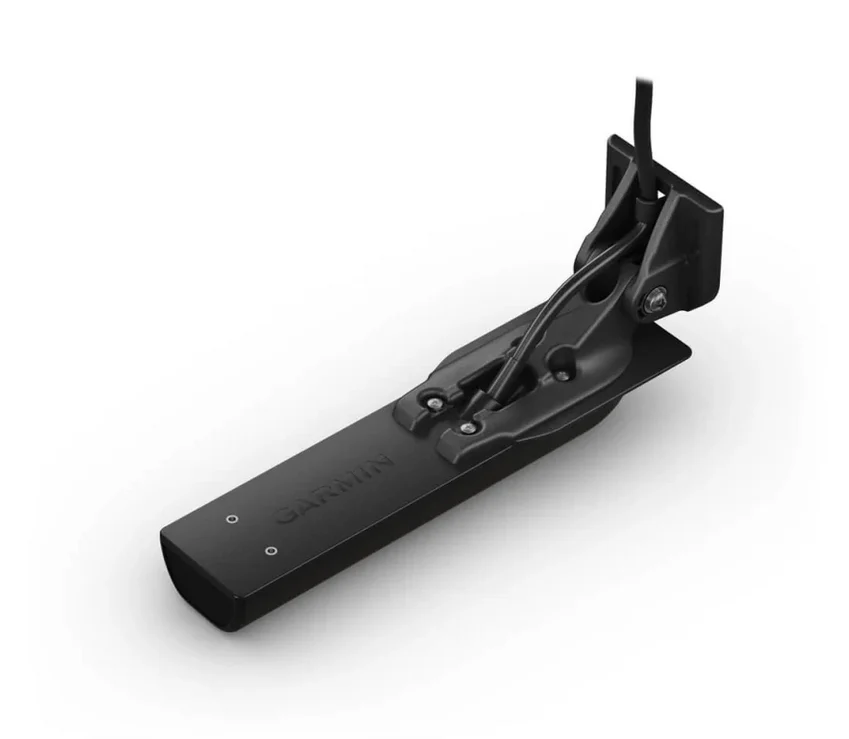

Garmin GT36UHD-TM Transducer - 010-13072-00
LESS TIME FINDING. MORE TIME FISHING.
This transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars for crystal-clear images of fish and structure, so you can spend more time catching fish.
See everything below and around your boat with Ultra High-Definition scanning sonar.
Multiple sonar frequencies have you covered — no matter what depth you’re fishing.
See targets and structure in bright, vivid color.
Mount this transducer your way — transom or trolling motor.
| Transducer cable length | 25 ft |
| Transducer power | ClearVü/SideVü 500 W |
| Transducer frequency | ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
| Transducer maximum depth | ClearVü: 400 ft; SideVü: 500 ft |
| Transducer number of pins | 12 |
| Transducer beamwidth | ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| Misc |
Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm |
| Transducer depth/speed/temperature | Depth and temperature |
| Transducer supported deadrise/transom angles | 0°-70° degree transom |
